SICK GRL18S-F2336 | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS

Features

Supply voltage UB                             10 V DC ... 30 V DC 1)

Ripple                                                 < 5 Vpp2)

Current consumption                         30 mA

Switching output                                PNP

Switching mode                                 Dark switching

Signal voltage PNP HIGH/LOW          VS - (≤ 3 V) / approx. 0 V

Output current Imax.                          ≤ 100 mA 3)

Response time                                    < 500 µs 4)

Switching frequency                           1,000 Hz 5)

Connection type                                 Connector M12, 3-pin

Circuit protection                                A 6)

                                                            B 7)

                                                            D 8)

Protection class                                   III

Polarisation filter                                 ✔

Housing material                                 Plastic, ABS

Optics material                                    Plastic, PMMA

Enclosure rating                                   IP67

Items supplied                                     Fastening nuts (2 x)

Electromagnetic compatibility (EMC)  EN 60947-5-2

Ambient operating temperature          –25 °C ... +55 °C 9)

Ambient temperature, storage             –40 °C ... +70 °C

UL File No.                                            NRKH.E348498 & NRKH7.E348498

1) Limit values. Operated in short-circuit protected network: max. 8 A.

2) May not fall below or exceed UV tolerances.

3) At Uv > 24 V or ambient temperature > 49 °C, IA max. = 50 mA.

4) Signal transit time with resistive load.

5) With light/dark ratio 1:1.

6) A = VS connections reverse-polarity protected.

7) B = inputs and output reverse-polarity protected.

8) D = outputs overcurrent and short-circuit protected.

9) At Uv<=24V and IA<50mA.

0.25mm2 SICK Instruments

SICK Instruments GR18

0.25mm2 Cylindrical Photoelectric Sensors

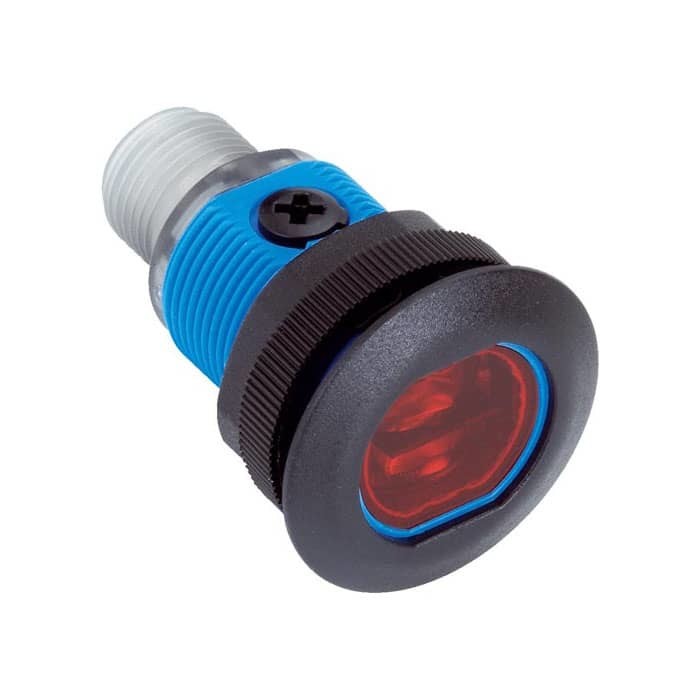

GRL18S-F2336 0.25mm2 SICK Instruments GR18 Cylindrical Photoelectric Sensors Images
