30V Pepperl Fuchs Safety Barrier NBN30-U4-A2 30mm Non Flush Inductive Sensor

Pepperl Fuchs Inductive sensor NBN30-U4-A2 30 mm non-flush

General specifications

Switching function    complementary

Output type    PNP

Rated operating distance    30 mm

Installation    non-flush

Output polarity    DC

Assured operating distance    0 ... 24.3 mm

Reduction factor rAl    0.33

Reduction factor rCu    0.31

Reduction factor r304    0.74

Reduction factor rBrass    0.38

Output type    4-wire

Nominal ratings

Operating voltage    10 ... 30 V

Switching frequency    0 ... 230 Hz

Hysteresis    typ. 5 %

Reverse polarity protection    reverse polarity protected

Short-circuit protection    pulsing

Voltage drop    ≤ 2 V

Operating current    0 ... 200 mA

Off-state current    0 ... 0.5 mA

No-load supply current    ≤ 20 mA

Time delay before availability    80 ms

Operating voltage indicator    LED, green

Switching state indicator    LED, yellow

Functional safety related parameters

MTTFd    1230 a

Mission Time (TM)    20 a

Diagnostic Coverage (DC)    0 %

Compliance with standards and directives

Standard conformity

Standards    EN IEC 60947-5-2

Approvals and certificates

UL approval    cULus Listed, General Purpose

CCC approval    CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature    -25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Connection type    screw terminals

Core cross section    max. 2.5 mm2

Housing material    PA/metal with epoxy powder coating

Sensing face    PA

Housing base    metal

Degree of protection    IP68 / IP69K

Mass    225 g

Dimensions

Height    40 mm

Width    40 mm

Length    118 mm

Note    Tightening torque: 1.8 Nm (housing)

30V Pepperl Fuchs Safety Barrier

Pepperl Fuchs Safety Barrier 30mm

non flush Pepperl Fuchs Inductive sensor

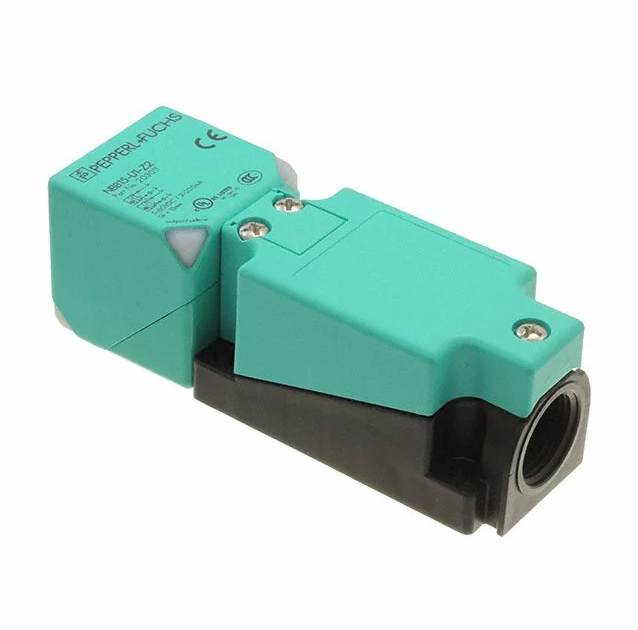

30V Pepperl Fuchs Safety Barrier NBN30-U4-A2 30mm Non Flush Inductive Sensor Images
