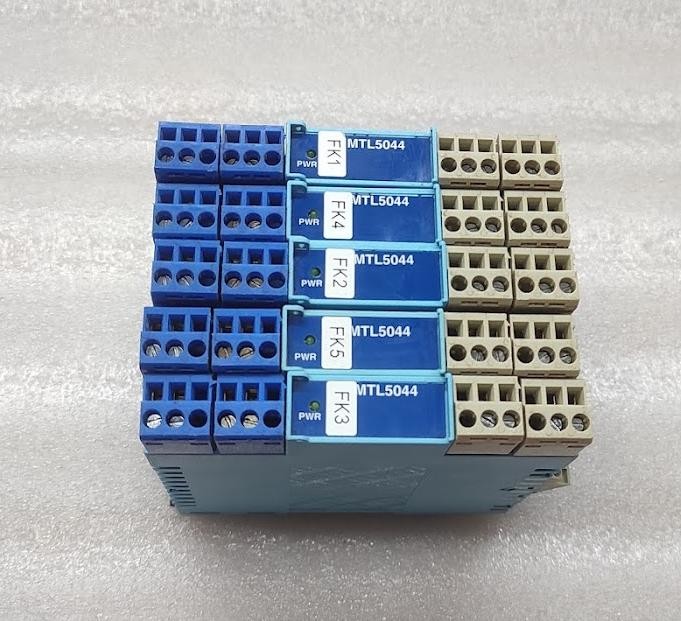

MTL5044 MTL Instruments Repeater Power Supply

Brand Name : MTL

Model Number : MTL5044

Certification : HART

Place of Origin : UK/China

MOQ : 1

Price : Negotiate

Payment Terms : T/T

Supply Ability : 1000pcs per week

Delivery Time : stock

Packaging Details : carton

Manufacturer : MTL Instruments

Product No : MTL5044

Signal range : 4 to 20mA

Shipping weight : 1kg

quality guarantee : 1 year

Contact Now

MTL5044 MTL Instruments Repeater Power Supply

      MTL5044 provides a fully-floating dc supply for energising two conventional 2-wire 4/20mA transmitters which are located in a hazardous area, and repeats the current in two floating circuits to drive two safe-area loads.

Specification

Product Type : Repeater Power Supply

Number of Channels : 2

Location of Transmitters : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

Response Time : Settles to within 10% of final value within 250µs

LED Indicator : Green : power indication

Supply Voltage : 20 to 35V dc

Maximum current consumption (with two 20mA signals) :

110mA at 24V

130mA at 20V

80mA at 35V

Maximum power dissipation within unit (with two 20mA signals) :

1.5W at 24V

Safety Description : 28V, 300Ω, 93mA; Um = 250V rms or dc

Shipping Weight: 1.5 Kg
