2V PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Proximity Sensor 0 - 300 Hz

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

General specifications
Switching function    Normally open (NO)
Output type    PNP
Rated operating distance    10 mm
Installation    flush in mild steel
Output polarity    DC
Assured operating distance    0 ... 8.1 mm
Reduction factor rAl    0.4
Reduction factor rCu    0.25
Reduction factor r304    0.5 (0.9 of material thickness 2 mm)
Reduction factor rSt37    1
Output type    3-wire
Nominal ratings
Installation conditions
A    0 mm
B    16 mm
C    30 mm
F    60 mm
Operating voltage    10 ... 30 V
Switching frequency    0 ... 300 Hz
Hysteresis    3 ... 15 typ. 5 %
Reverse polarity protection    yes
Short-circuit protection    yes
Voltage drop    ≤ 2 V
Operating current    0 ... 200 mA
Off-state current    ≤ 0.1 mA
No-load supply current    ≤ 10 mA
Time delay before availability    ≤ 40 ms
Switching state indicator    LED, yellow
Limit data
Operating pressure statically    60 bar (870.2 psi) max.
Functional safety related parameters
MTTFd    655 a
Mission Time (TM)    20 a
Diagnostic Coverage (DC)    0 %
Compliance with standards and directives
Standard conformity
Standards    EN IEC 60947-5-2

2V inductive proximity sensor

inductive proximity sensor 300Hz

NMB10-18GH50-E2-V1

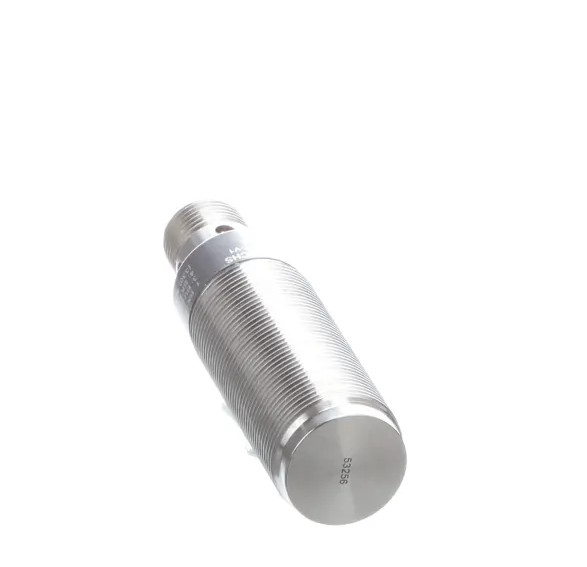

2V PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Proximity Sensor 0 - 300 Hz Images
