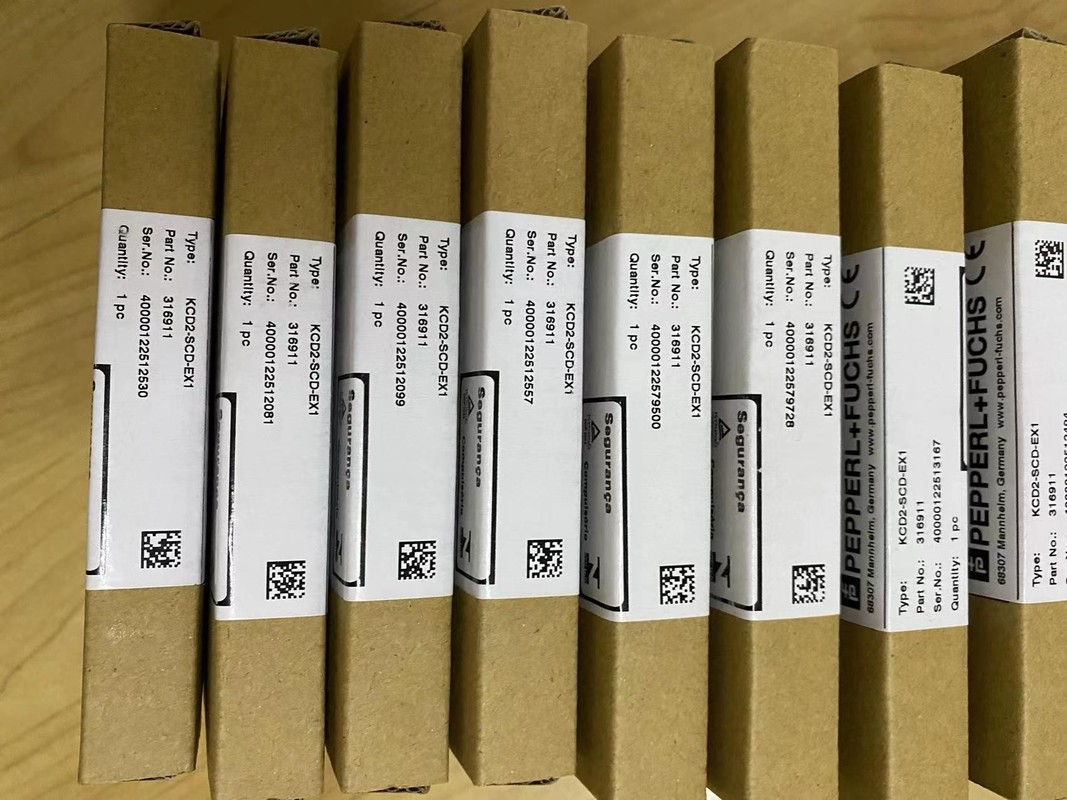

SIL SMART Pepperl Fuchs Safety Barrier KCD2-SCD-Ex1 Current Driver Housing 12.5 Mm

General specifications
Signal type    Analog output
Functional safety related parameters
Safety Integrity Level (SIL)    SIL 2
Systematic capability (SC)    SC 3
Supply
Connection    Power Rail or terminals 9+, 10-
Rated voltage    19 ... 30 V DC
Ripple    ≤ 10 %
Rated current    ≤ 30 mA at 24 V
Power dissipation    ≤ 600 mW at 20 mA and 500 Ω load
Power consumption    ≤ 700 mW
Input
Connection side    control side
Connection    terminals 5-, 6+
Input signal    4 ... 20 mA , limited to approx. 26 mA
Input voltage    open loop voltage of the control system < 30 V
Voltage drop    approx. 6 V at 20 mA
Input resistance    > 100 kΩ, with field wiring open
Output
Connection side    field side
Connection    terminals 1+, 2-
Voltage    ≥ 13 V at 20 mA
Current    4 ... 20 mA
Load    0 ... 650 Ω
Ripple    20 mV rms
Transfer characteristics
Deviation    at 20 °C (68 °F), 4 ... 20 mA
< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature    < 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Frequency range    field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
Rise time    10 to 90 % ≤ 10 ms
Galvanic isolation
Input/Output    basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply    basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply    reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Indicators/settings
Display elements    LED
Labeling    space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU    EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility    NE 21:2017
EN 61326-3-2:2018
Degree of protection    IEC 60529
Protection against electrical shock    UL 61010-1:2019
Ambient conditions
Ambient temperature    -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection    IP20
Connection    screw terminals
Mass    approx. 100 g
Dimensions    12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2
Height    124 mm
Width    12.5 mm
Depth    114 mm
Mounting    on 35 mm DIN mounting rail acc. to EN 60715:2001
